delivery drone electric VTOL UAV 10KGS payload Lidar carry capacity for aerial mapping aerial survey

delivery drone electric VTOL UAV 10KGS payload Lidar carry capacity for aerial mapping aerial survey

Description

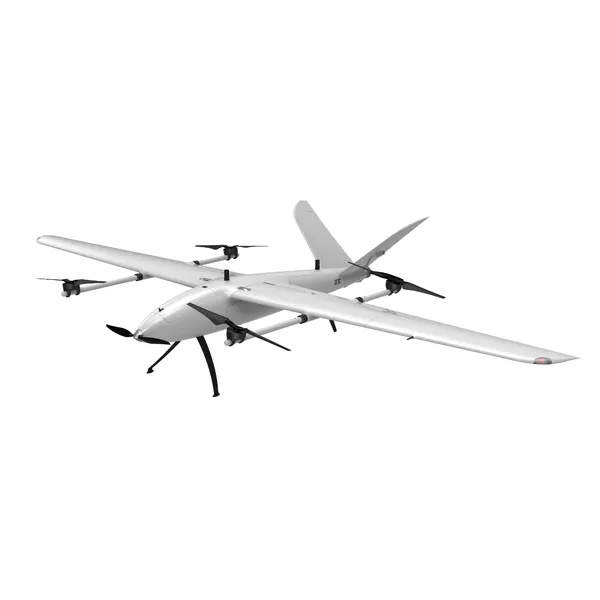

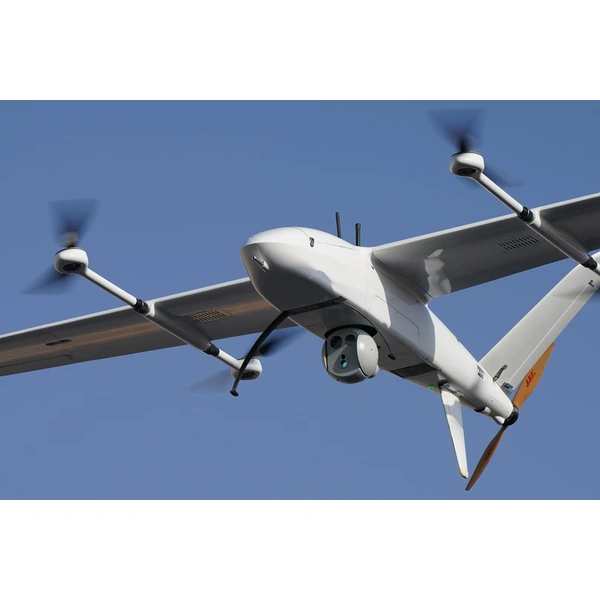

HF-03 is the newest pure electric vertical take-off and landing(VTOL) Fixed-wing UAV , which is based on long-endurance, large  payload, and multi-purpose to meet a variety of applications.
The maximum payload of the HF-03 is 10kg, and max flight time is up to 4  hours. It can fly 120 minutes with 6.5kg Lidar and 90 minutes with a full  load 10kg.
Modular design realized rapid deployment. VTOL and high-speed cruise,  can take-off and landing independently on movable platforms and  complex environments.

It supports mainstream security payloads for surveillance (visible light,  infrared light), mapping payloads (lidar, orthophoto camera, etc.), logistics  delivery payloads, and can expand more mission payloads such as  multispectral, megaphone and gas detection to realize wide application in  more scenes.



Design Features
(1) Long distance image transmission:30km control radius, 1080P high definition image transmission.
(2) 50million camera pixels, guarantee the aerial survey data quality.
(3) RTK location technology, centimeter-level exterior line elements.
(4) Fully automatic driving, convenient system operation.
(5) Smooth flight, resistant to complex climates, high quality aerial photography.
(6) Multiple landing mode, free from site restrictions.
(7) Without time limit, using visible light camera at daytime for the surveillance, using infrared camera to monitor target thermal signal at night.
(8) Mature product, stable performance, hundreds of sorties successful flying mission.
(9) High reliability (equipped with dual engine)
(10) Intelligent control (throttle output makes the start and stop automatically)
(11) Low current distribution (Dual engine avoid overheat protection of motor and ESC from continuous climbing)
(12) Large payload cabin (The size of independent detachable payload cabin is 450*250*160mm)

Technical Specification of HF-03 vtol drones

MTOW34kg
Weight without battery and payload16kg
Wingspan4,128mm
Length1,920mm
Height750mm
Frame weight7.45kg
Max payload (battery included)17.7kg
Battery weight (Tattu 6S 32000mAh)7.2kg
Suggested max payload weight10kg
Endurance3.5 hours (2kg payload) / 2 hours (6kg payload) / 90min (10kg payload)
Cruise speed75-90km/h
Max speed120km/h
Stall speed57.6km/h
Max ascend speed14.4km/h
Max descend speed18km/h
Anti-wind capability43.2km/h
Operating Altitude(Max.)4,500m ASL

Your Purchase Includes vtol drones

1 x VTOL fixed-wing airframe
4 x Lift motor
4 x ESC for lift motr
2 x 26 inch CF Propeller CW&CCW
1 x ESC for fixed-wing motor
1 x Fixed-wing motor
1 x 22 inch CF Propeller CW for fixed-wing motor
4 x Servo
1 x Air Speedometer
1 x Power Module For Flight Controller
1 x Pixhawk Cube Orange Standard Set With Here 3 GNSS
1 x Remote controller
1 x Assembly and Flight Test Service
2 x Aluminum box
