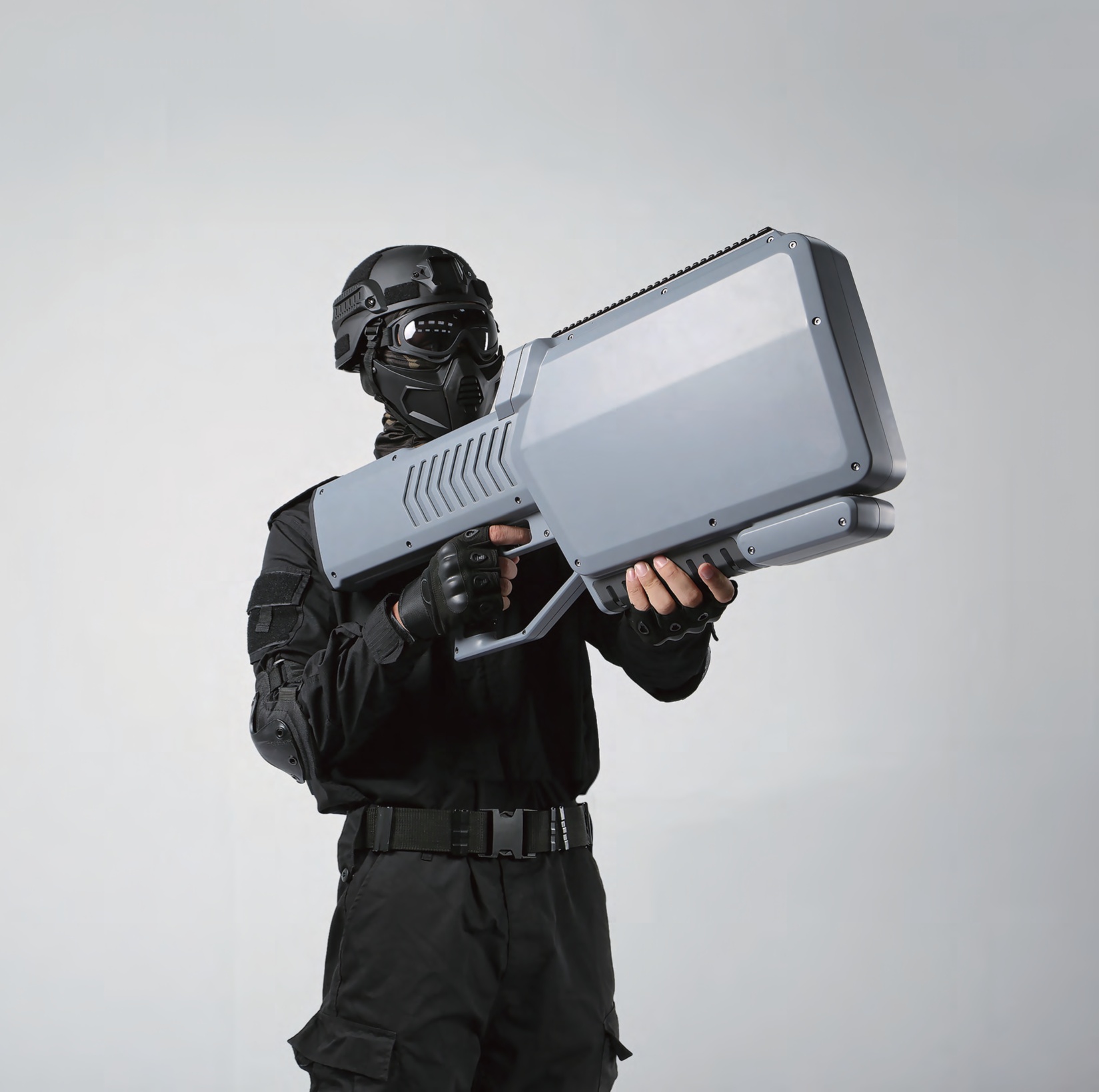

SHH100 is a cost-effective, versatile handheld jammer that can detect, identify, locate, and mitigate drone threats. Hunter delivers exceptional effectiveness against the majority of types and models of UAVs. It possesses the capability to simultaneously disrupt the control link, navigation and video transmission of multiple drones. Hunter revolutionizes mitigation technology with its sleek and all-in-one design, enabling precise RF and GNSS jamming. With its compact form factor and user-friendly interface, Hunter is the ultimate counter-drone solution for various scenarios, including event security, VIP protection and energy facility security.

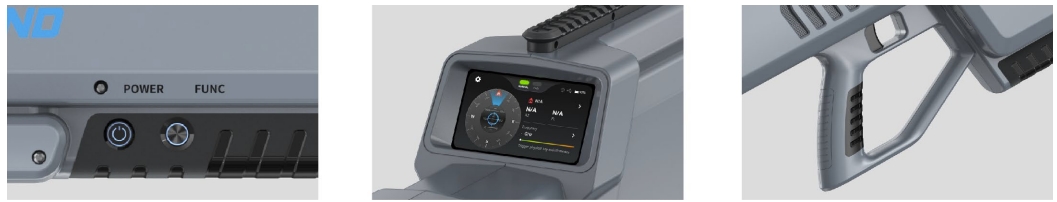

Data Visualization The 3.5-inch touchscreen offers a range of directional guidance operations to assist users in quickly aligning the drone's direction. When used in conjunction with radar, it provides a more intuitive view of the status of the targeted drone and feedback on successful strikes within the C2 system. Users can utilize the touchscreen to adjust basic settings such as alarm modes, device connectivity, and software updates.
HARDWARE
Dimensions (mm) : 778 × 337 × 113 (LxWxH)
Weight (kg) : 6.5
Operation Time (hr)
Detection : ≥ 8 Jamming: ≥ 1
Touch panel : 3.5”, 1,280 × 720
DETECTION
Maximum Range (m) : 2,000
Frequency : 400MHz~6GHz
Customizable Full-Band Coverage
Direction : Omnidirectional
Direction Finding Precision
Azimuth：10° Pitch：10°
JAMMING
Maximum Range (m) : 3,000
Signals Jammed : Flight Control and Image Transmission Signals
GNSS Signal Interference : Covers the global satellite positioning signal types, e.g. GPS, GLONASS,BeiDou, Galileo.
Frequencies : 400MHz~6GHz Customizable Full-Band Coverage
Automatic Frequency Adaptation : Supported FoV
Azimuth: ±15° Pitch: ±7°
POWER
Power Supply : Rechargeable Battery
Accessories : Battery x2, Charging Base x 1, Adapter x 1, Power Cable x 1
Voltage (V) : 21.8
Capacitance (WH) : 152.6
OTHERS
Software Update : Supported
Temperature Range Operating Temperature (°C) : -20 ~ +55 Storage Temperature (°C) : -20 ~ +60 IP Rating : IP65

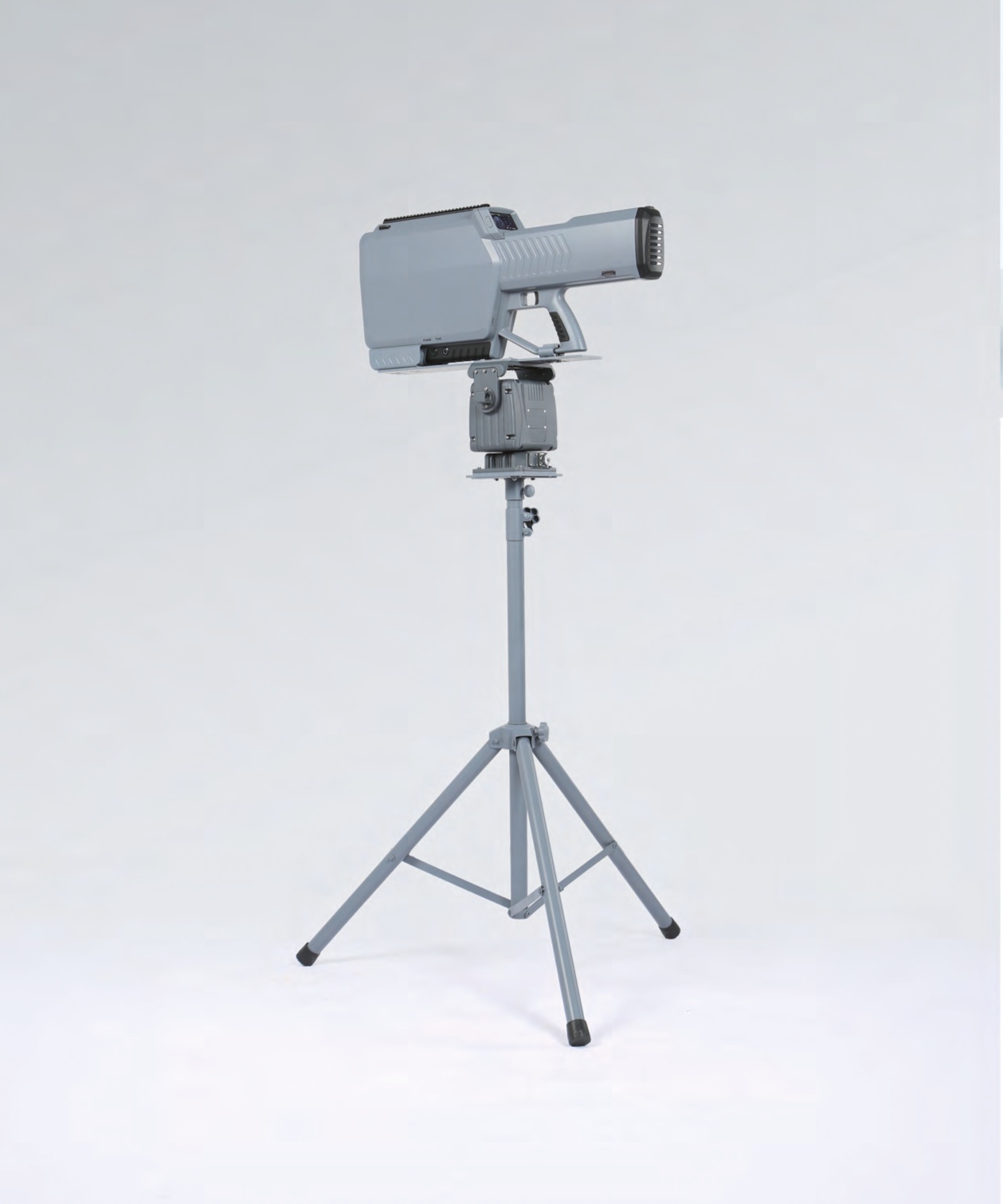

Available Modes : Handheld/Fixed
