Heavy payload 20kg payload 60min long  endurance drone UAV

Heavy payload 20kg payload 60min long endurance drone UAV flight platform multirotor drone

20kg payload,60min endurance heavy payload drone flight platform.

It can be equipped with various payload devices, and can achieve tasks such as aerial video data acquisition and real-time transmission, 3D surveying and mapping, emergency rescue, aerial throwing, aerial shouting.

Description

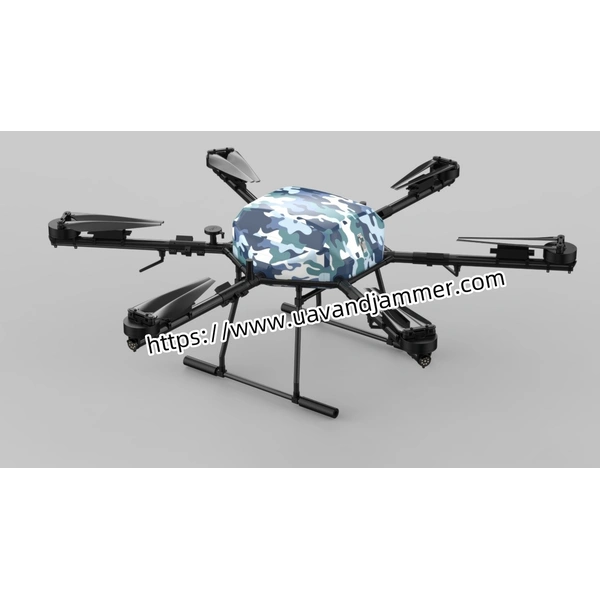

The drone platform is a fully electric six rotor unmanned aerial vehicle system independently developed by our company, which has a universal loading capacity and a long endurance. This platform can be equipped with various payload devices, and can achieve tasks such as aerial video data acquisition and real-time transmission, 3D surveying and mapping, emergency rescue, aerial throwing, aerial shouting, and environmental monitoring.performance, high reliability, strong environmental applicability, high integration, and simple use among similar products, It can achieve fully autonomous takeoff and landing, cruise capabilities, dual redundant flight control systems, and multiple safety control strategies to ensure the safety and reliability of flight use.

The drone platform has the following characteristics and advantages:

a)   Practical and efficient: With a maximum load capacity of 20kg, it can be equipped with cameras, pods, and other security, police, and inspection fields;

b)   VTOL: small takeoff and landing site, strong environmental applicability;

c)   Low usage cost: Equipped with a high-voltage version lithium battery with a standard charging and discharging life of 500 times, there is no additional usage cost;

d)   Easy to operate: Integrated with specialized flight control and navigation systems, fully autonomous flight throughout the entire process, operators only need to send flight plans, without the need for professional training and operational experience;

e)   Modular design: Without the need for complex auxiliary equipment, transportation, deployment, maintenance, and retrieval are simple.

Technical Parameter

Performance/metrics

parameter

Number of rotors

6

wheelbase

1800mm

Unfolded size (excluding blades)

1917*1917*450mmlength * width * height

Folded size

1100*1000*650mmlength * width * height

Maximum takeoff weight

60kg

Maximum payload

20kg

Empty weight (excluding battery)

15kg

Power battery weight

23kg

Working frequency band

2.4GHz

Flight time

35min20kg,altitude 100m),60min(3kg load),60min(without load)

Maximum Climb Speed

6m/s

Maximum descent speed

5m/s

Maximum flight speed

20m/s

Maximum   flight altitude

5000m

IPprotection   grade

IP45

Ambient Temperature

-20°C 50°C

Maximum wind resistance

15m/sLevel 7

Outer dimensions of the transport box

1128*1129*690mmlength * width * height

Dimensions inside the transport box

1104*1104*660mmlength * width *   height

Transport weight (including aviation containers)

50kg
