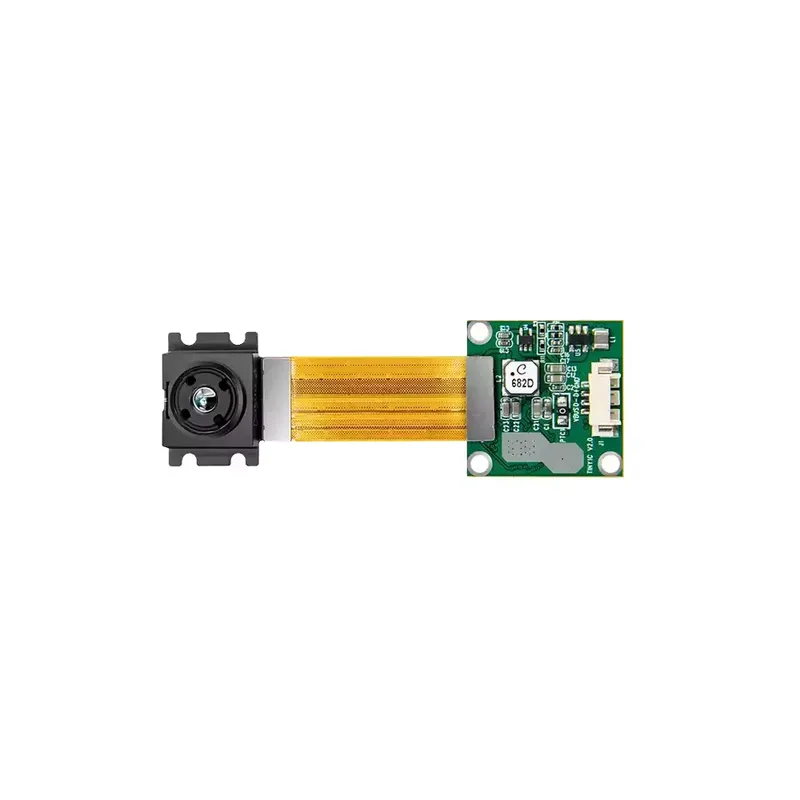

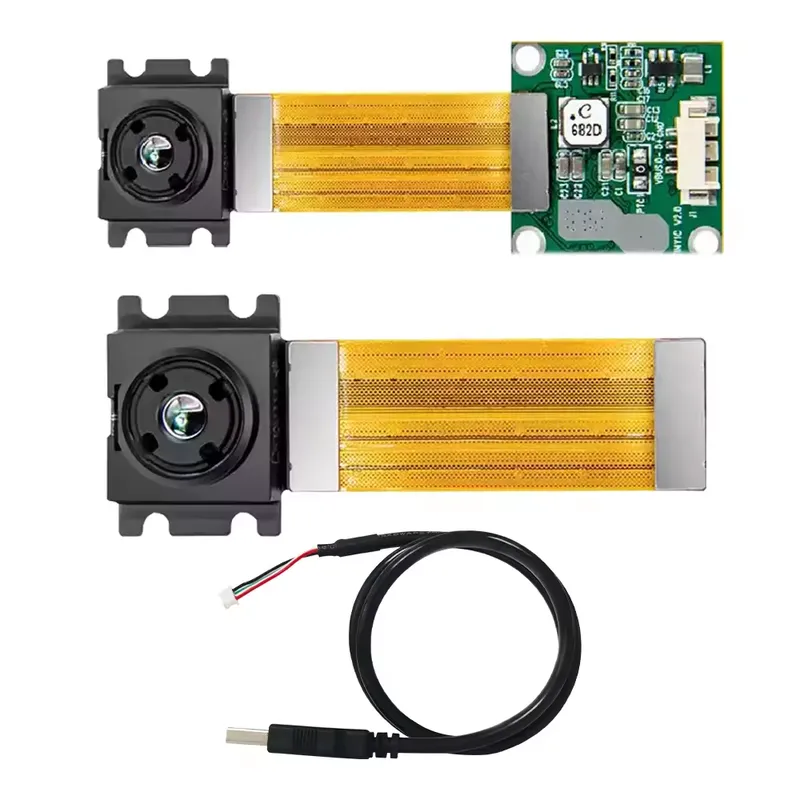

256*192Resolution/ Focal length3.2mm . it is applicable to security monitoring, temperature measurement tools, personal digital assistants (PDAs), smart household appliances, and other fields.
Specification
Effective Visual Distance
Technique Data | USB Adapter Board |
|
Sensor Technology | Uncooled VOx microbolometer |
Resolution | 256×192 |
Focal length | 3.2mm |
Pixel Pitch | 12 μm |
NETD | ＜50mK @25℃，F#1.0，25Hz |
Response Time | <10ms |
Effective Frame Rate | ≤25Hz |
Non-uniformity Correction | Automatic with shutter |
Image Output | 10/14-bit CMOS |
|
Input Supply Voltage | 3.3V, 5V |
Image Data Interface | SPI/DVP |
Command and Control |
I2C
|
Power Consumption (@Room Temperature) | Operating: 240 mW (Typical) During shutter event: 600mW (Typical) |
|
Operating Temperature | -40℃~80℃ (Thermal maging) -10℃~75℃ (Industrial temperature measurement) 10℃~50℃ (Biological temperature measurement) |
Storage Temperature | -45℃~85℃ |
Shock | 25g @11ms, half sine wave, XYZ directions |
