MAK4 5/6/7/8/9 inch FPV Racing Drone Frame Carbon Quadcopter Frame
MAK4 5/6/7/8/9 inch FPV Racing Drone Frame Carbon Quadcopter Frame
  • MAK4 5/6/7/8/9 inch FPV Racing Drone Frame Carbon Quadcopter Frame
  • MAK4 5/6/7/8/9 inch FPV Racing Drone Frame Carbon Quadcopter Frame

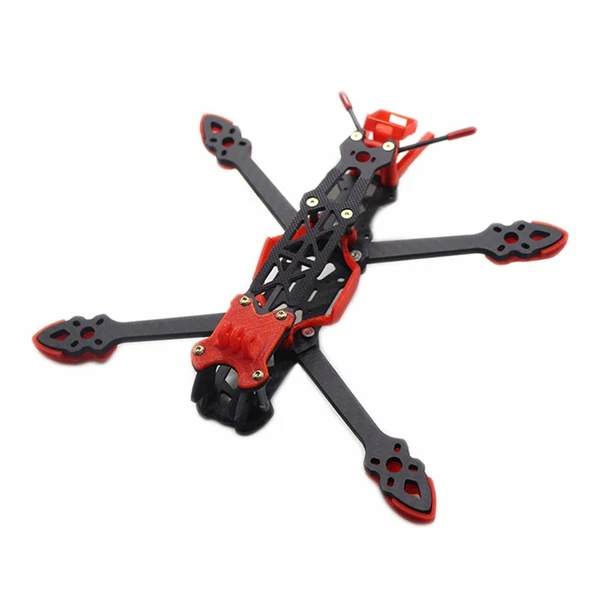

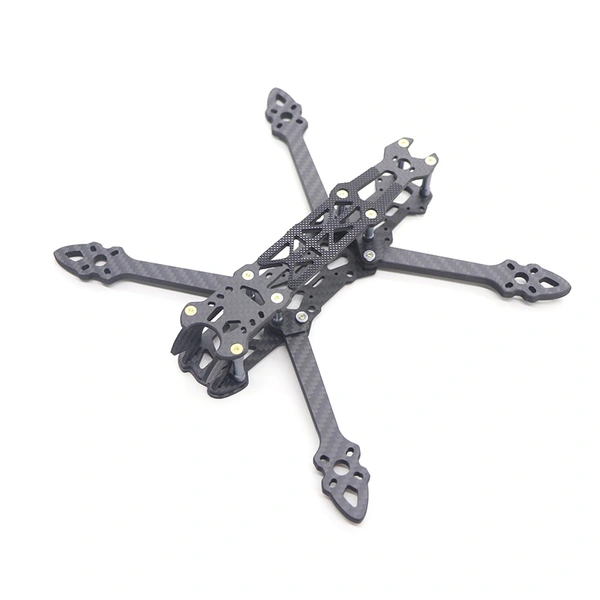

MAK4 5/6/7/8/9 inch FPV Racing Drone Frame Carbon Fiber Quadcopter Frame Kit 3D Printed Fixed Seat

MAK4 5/6/7/8/9 inch FPV Racing Drone Frame Carbon Fiber Quadcopter Frame Kit  3D Printed Fixed Seat

Description

Note:ALL OF FRAMES FITS 20*20 and 30.5x30.5 Stacks. HD Version Frames Support for DJI AIR Unit.

Specification:

Brand name: HSKRC

Item name: MAK4/MAK4HD 5inch
Wheelbase:225mm
Arm thickness: 5MM
Upper center board: 2MM
Lower center plate: 3MM
Camera protection frame board thickness: 2MM
Plywood thickness: 2MM
weight: about 111g/120g(3D Prints included)

Recommended configuration(not included):
     Flight control: RF / Kiss / F4 / F3 / F7
     Motor: 2205/2206/2207/2305/2306
     ESC: 30A-50A
     Battery: 4S 1500mAh ~ 6S 1150mAh

Item name: MAK4/MAK4HD 6inch
Wheelbase:260mm
Arm thickness: 5MM
Upper center board: 2MM
Lower center plate: 3MM
Camera protection frame board thickness: 2MM
Plywood thickness: 2MM
weight: about 120g/130g(3D Prints included)

Recommended configuration(not included):
     Flight control: RF / Kiss / F4 / F3 / F7
     Motor:2207/2305/2306/2407
     ESC: 30A-60A
     Battery: 4S 1500mAh ~ 6S 1300mAh

Item name: MAK4/MAK4HD 7inch
Wheelbase:295mm
Arm thickness: 5MM
Upper center board: 2MM
Lower center plate: 3MM
Camera protection frame board thickness: 2MM
Plywood thickness: 2MM
weight: about 130g/140g(3D Prints included)

Recommended configuration(not included):
     Flight control: RF / Kiss / F4 / F3 / F7
     Motor: 2207.5/2305/2306/2407/2408/2507
     ESC: 30A-50A
     Battery: 4S 1800mAh ~ 6S 2200mAh

Package Included:
1 x  Frame Kit
