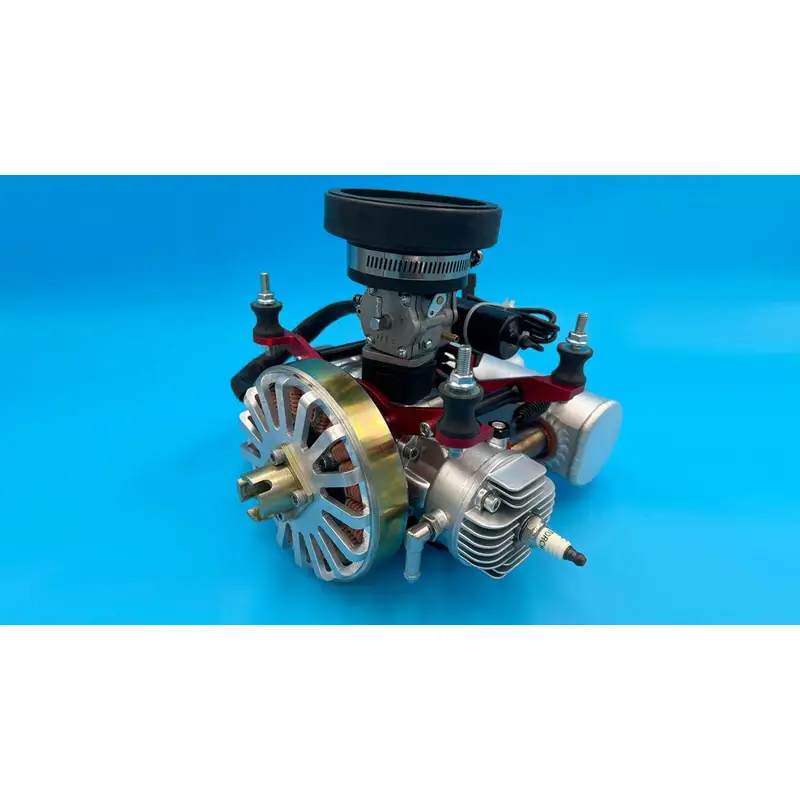

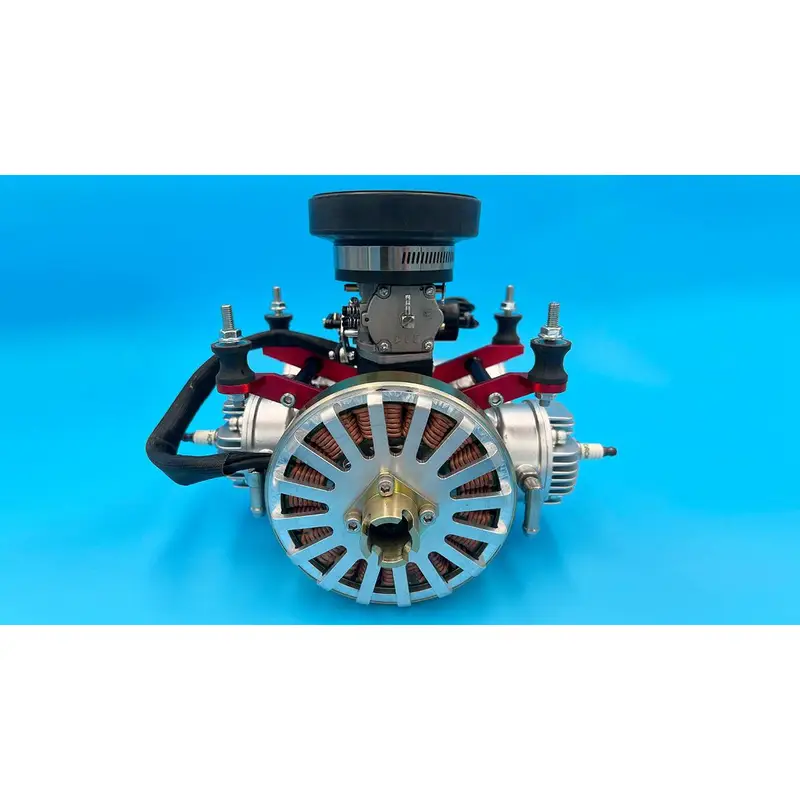

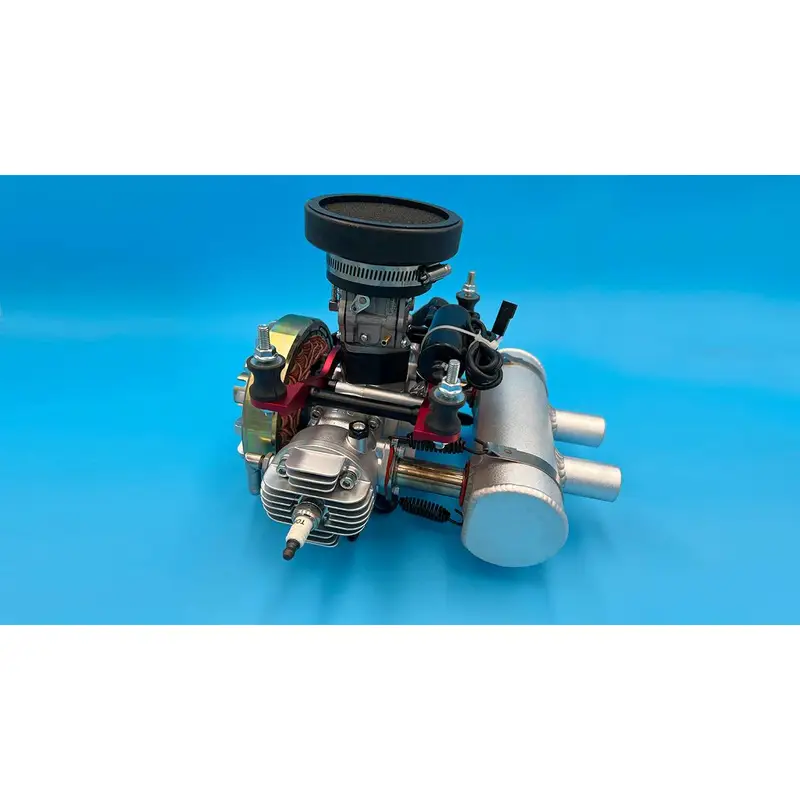

DLE70HD Hybrid engine for aircraft / drone/UAV

DLE70HD hybrid engine, which was launched in March 2021, is a double cylinder two-stroke water-cooled piston engine with efficient water cooling and heat dissipation, providing a more stable working mode for the engine. The engine is designed to provide power for aircraft. This power package is an independent and complete closed-loop system. It has nothing to do with the use and adjustment of remote control and flight control.

Description


DLE70HD hybrid engine, which was launched in March 2021, is a double cylinder two-stroke water-cooled piston engine with efficient water cooling and heat dissipation, providing a more stable working mode for the engine. The engine is designed to provide power for aircraft. This power package is an independent and complete closed-loop system. It has nothing to do with the use and adjustment of remote control and flight control.



  • Generator parameters:

  • Three phase permanent magnet generator

  • Voltage: ac50v to dc50v

  • Frequency: non constant frequency type, which changes with the engine speed

  • Engine parameters:

  • Horizontal opposed double cylinder water cooling

  • Displacement : 70cm3

  • Cylinder bore × trip:38.5mm×30mm

  • Power 7hp/8200 RPM power: 4.2kW (0 altitude)

  • Idle speed: 5000-6000 rpm

  • Engine weight: 4.8kg

  • Weight of cooling system; 2kg (including 800ml coolant)
