Product Introduction

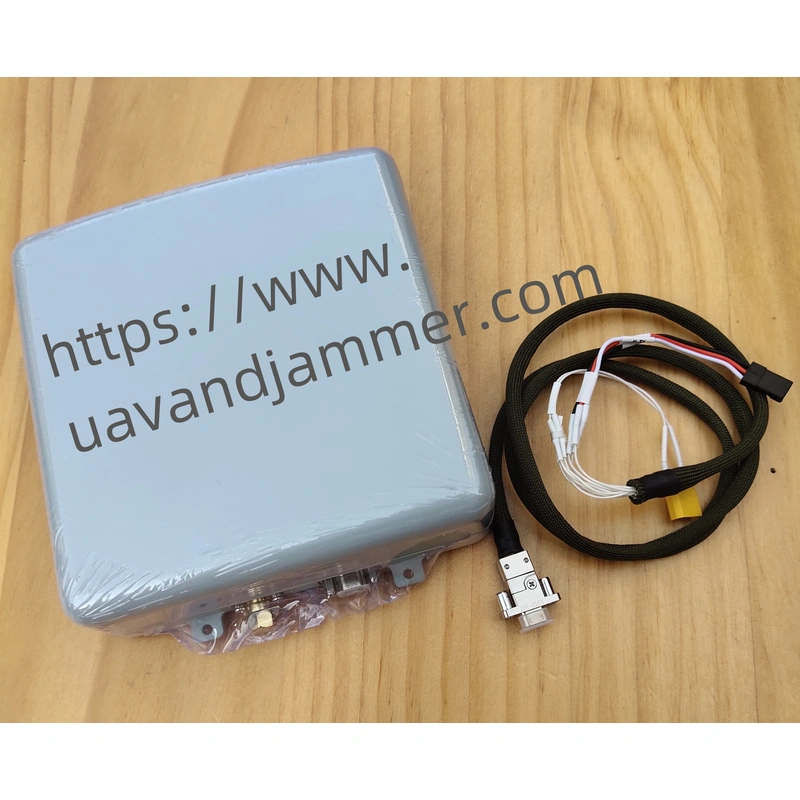

The model of this product is GNSS-12V .It serves reliable navigation fields such as unmanned vehicles, protects user terminals from all kinds of unintentional interference and malicious attacks, and greatly improves PNT information security.
l Has interference power detection function, convenient for interference calibration, combined test of the whole machine
l Support secondary development, further spectrum monitoring, histogram analysis and other processing
l Support 4 array full frequency point anti- Jamming
l Built-in full-frequency navigation and positioning module outputs positioning information according to NEMA0183 protocol.
l Anti-Jamming ability:
Ø Single-direction interference: better than 95dBc
Ø Three-direction interference: better than 85dBc
l Type of interference:
Ø Band-limited Gaussian white interference, spread spectrum matching spectrum interference;
Ø Pulse interference, sweep interference;
Ø Mixed interference;
l Anti-interference airspace: angle of orientate: 0°~360°, angle of pitch: -30°~90°
l Dimensions: (130±0.5)mm×(135±0.5)mm×(38±0.5)mm
l Power consumption: 10W (at room temperature, including positioning module)
l Weight: < 400g
130mm x 135mm x38mm。
Product structure dimension diagram
The interface definition is shown in the following table:
Module interface definition
Serial number | Code name | Connector type | Function description |
1 | TX | SMP-JYD | GNSSRF Output, reserved |
2 | DATA | J30J-9ZKP | +12V Power input, Serial port |
数据接口管脚定义如表所示：
J30J-9ZKP Pin definition
Pin number | Definition | Remarks |
1/2 | VCC12V | Power supply |
3/4 | GND | |
5 | UART_TXD | User serial port, TTL level |
6 | UART_RXD | |
7 | UART_DGND | |
8 | NC | reserved |
9 | NC | reserved |
