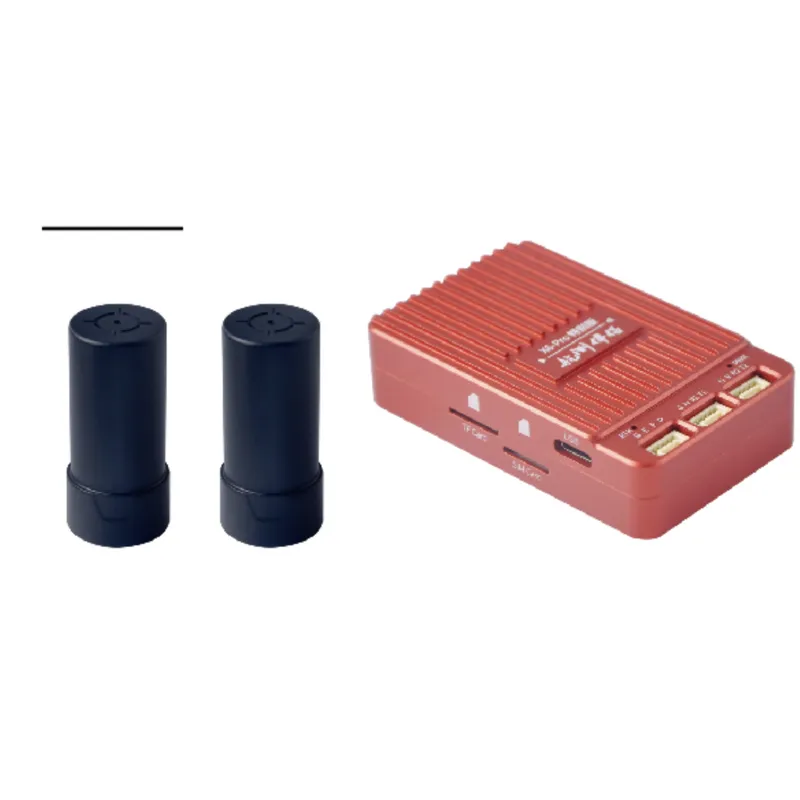

X6S is a new multi-band, multi-constellation satellite receiver with multiple data interfaces. It issuitable for unmanned aerial vehicles, fully automatic robots, precise control, unmanned driving, andotherapplications. It can track all global satellite navigation system (GNSS) constellations, support all currentsatellite signals, and has unique AIM+ anti-jamming technology, which is especially effective incomplexenvironments. At present, it is widely used in GNSS mass market.
Product characteristics
• X6 S uses high-performance chips
• There are over 2 million effective correlators
• 448 hardware channels, which can track all visible satellite signals simultaneously
• Up to 100Hz positioning update rate and 100Hz measurement update rate
• Ultra-low latency of less than 10ms
• AIM + Interference Monitoring and Suppression
• IONO + Ionospheric scintillation suppression
• Lock + Excellent tracking robustness
•APME + Multipath Suppression Technology
• RAIM + Autonomous integrity monitoring of receiver
• Can be used as a mobile base station
• When vibrating at high frequency and moving quickly, the satellite signal can be trackedsmoothly
• Gps, GLONASS, BDS, Galileo, qzss, Navi c and sbas satellites are supported
• Integrated TCXO,LNA, and a TF card slot up to 32G
• Compact size (68.4*41.8*13.5mm±0.3mm), suitable for relatively compact space, weighingonly45g
• Standard NMEA 0183, SBF, RINEX, RTCM, CMR/CMR+
• It has functions of interference indicator, interference mitigation and spectrummeasurement
• Support high precision positioning and dual antenna course output, error 0.2 degrees
• Support OSNMA anti-deception
