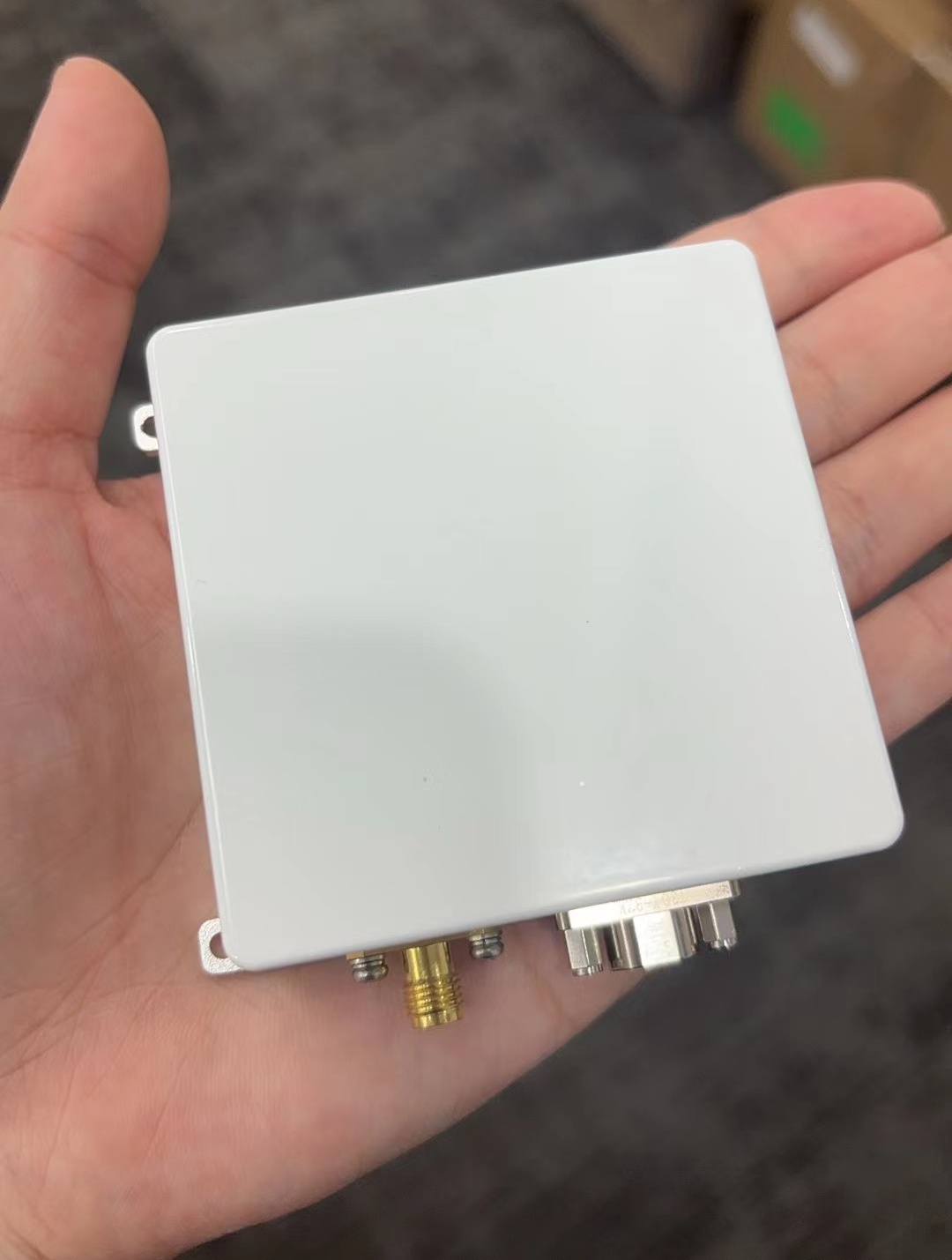

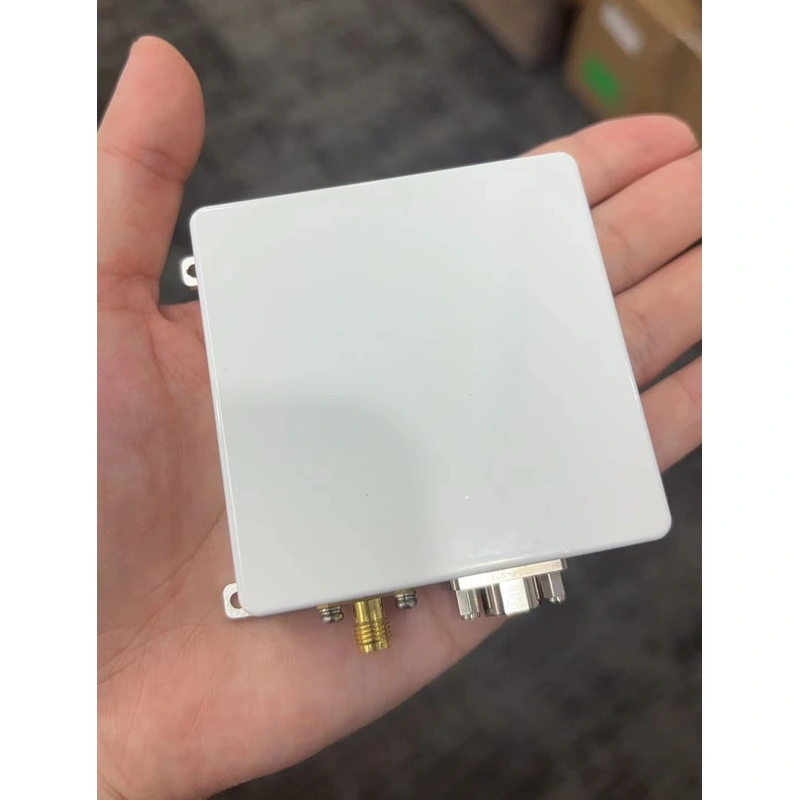

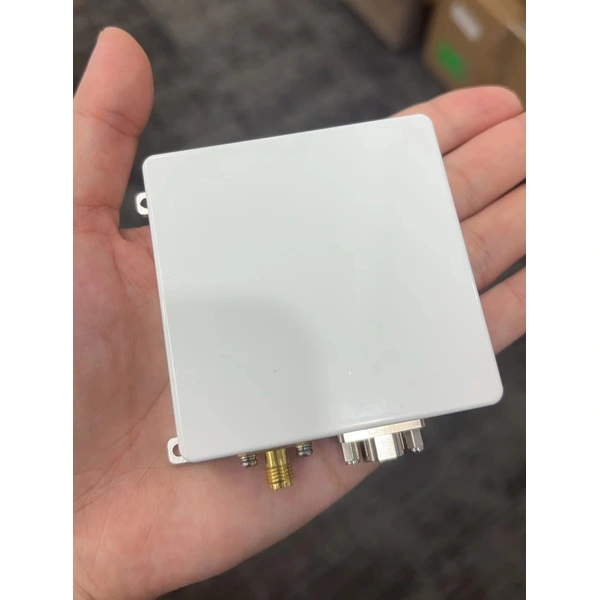

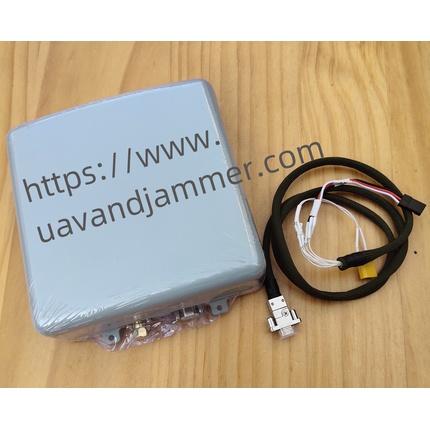

ST65 ultra-miniaturization anti-interference all-in-one machine is a satellite navigation anti-interference all-in-one machine for the needs of small and medium-sized UAV and other industries, which supports the anti-broadband interference ability and positioning function of Beidou B1 and GPS frequency point signals. Internal integrated antenna array, anti-jamming components and satellite navigation receiver, with miniaturization, lightweight, and low cost characteristics.
Product function
RNSS signal reception
1) With the function of receiving RNSS signals from navigation satellites such as Beidou-3 and GPS
2) Civil code: B1C, B1I, and GPS L1
2. Anti-interference function
With the anti-interference function of B1 and L1 frequency points, it can suppress narrowband interference, broadband interference, pulse interference, sweep interference, Gaussian interference and other suppression interference
3. Software upgrade
With the software upgrade function, you can upgrade the anti-interference module
and the receiver module through the serial port.
4. System self-inspection
It has self-check and status inspection functions.
5. Anti-burning function
The continuous W power is not less than 10W.
Behaviour of electricity
1. Frequency of work
B1I：1561.098MHz；L1/B1C：1575.42MHz
2. Anti-interference performance
Unidirectional interference ≥ 95dBc
Two-direction interference ≥ 85dbc
Three-direction interference ≥ 80dBc
3. Positioning accuracy
Horizontal oneself 10 meters .
The height is 15 meters.
4. Speed measurement accuracy
0.2 m / second (95%)
5. Time-giving accuracy ≤100ns（95%）
6. Operating voltage
The input voltage is 5 to 17 V
7. Power consumption ≤6W
Structural requirement
1、Overall dimensions: 65x65x21mm
2、Weight:≤130g
3、Color: gray
environmental suitability
1. Operating temperature: -40℃ ~ + 55℃
2. Storage temperature: -55℃ ~ + 70℃
3. Relative humidity: temperature: 40℃; humidity: 96%
4. Rain: meet the requirements of GJB150A rain test
Typical application occasions
1. Power, communications, finance and other fields of time security
2. Uaerial vehicles, unmanned vehicles, unmanned ships and other navigation safety
3. Convoy defense and navigation security
4. High-end logistics and navigation security
Connection relationship description
1. The electrical signal connection of the product and the platform carrier is connected by low-frequency data mode.

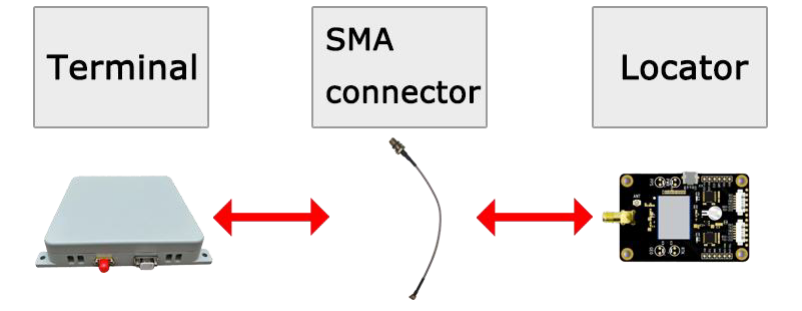

2. This product has a built-in locator, which can replace the conventional positioning terminal and antenna. The following schematic diagram:

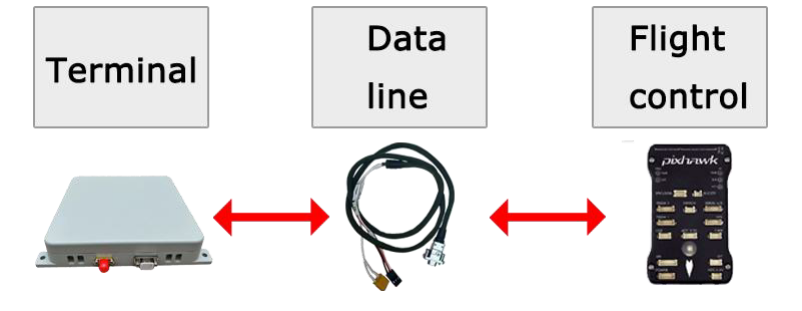

3. In the RF signal access mode, this product replaces the conventional active antenna. The following schematic diagram.
4. When using usb to TTL tool to connect to the computer, do not plug usb to damage the serial port.
For more details,please contact us.
