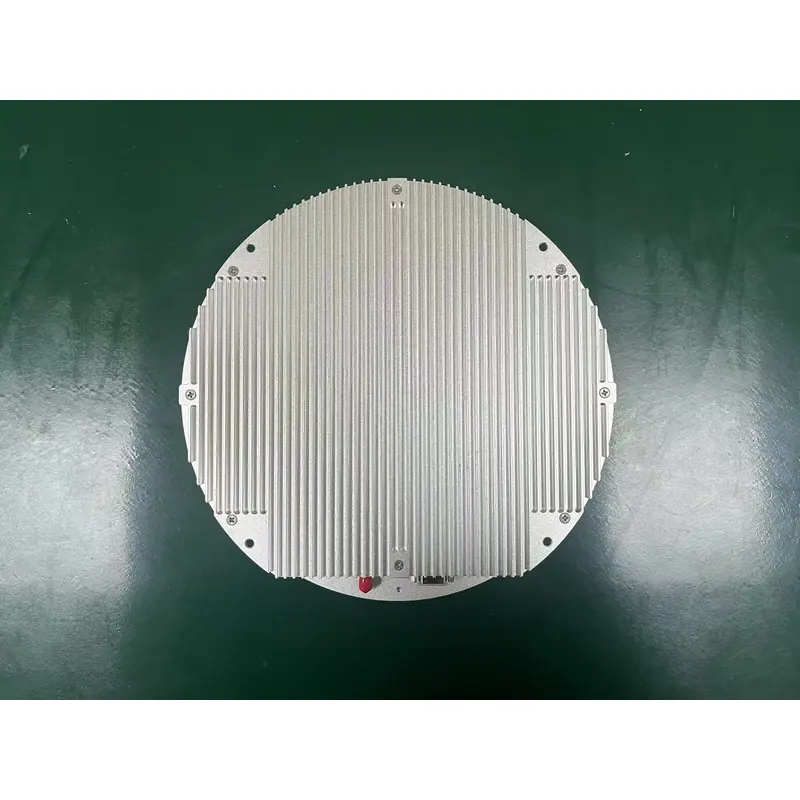

Product presentation
STX18 Anti-Jam CRPA System supports critical missions by providing jam free GNSS signals. With an 11-array CRPA antenna, the system can assure the normal operation of GNSS receiver in presence of multiple jamming sources.
STX18 Anti-Jam CRPA System can be employed using various configuration and operates with civil and military GPS receivers for the land, sea, air platforms (including unmanned aerial systems) and fixed installations. The product has an embedded GNSS receiver that supports all satellite constellations.
How it works
STX18 mitigates interference by creating nulls in the antenna gain pattern in the direction of jammers, providing significant anti‑jam protection even in dynamic multi‑jammer scenarios. The output is a protected standard Radio Frequency (RF) signal, free from jamming and suitable for input to modern and legacy GNSS receivers.
Product function
1. This product has 11 arrays and can resist up to 9 interferences.
2.RNSS signal reception
1) ) It has the function of receiving signals from Beidou, GPS, GLONASS and GALILEOnavigation satellites RNSS.
2) Civil codes:
GPS L1 L2(or L5),GAL E1,BDS B1,GLO L1
3. Anti-interference function
It has anti-jamming functions with BDS-B1, GPS-L1L2/L5, GLO-L1 and GAL-E1 frequencypoints, which can suppress narrowband jamming, broadband jamming, pulse jamming, sweepfrequency jamming, Gaussian jamming and other suppression jamming.
4. Built-in full frequency navigation and positioning module, output information according to NMEA0183 protocol.
5. Serial port output or RF port output can be used.
6. Software upgrade It has the function of software upgrade, and can be upgraded through the serial port to the interference module and receiver module
Behaviour of electricity
Working frequency BDS-B1：1561.098MHz, GPS-L1、GAL-E1：1575.42MHz, GPS-L2:1227.6MHz,GPS-L5:1176.45MHz，GLO-L1：1602MHz
2. Anti-interference performance
Single interference dry signal ratio: ≥105dB
6 interference dry signal ratio: ≥97dB
9 interference dry signal ratio: ≥95dB

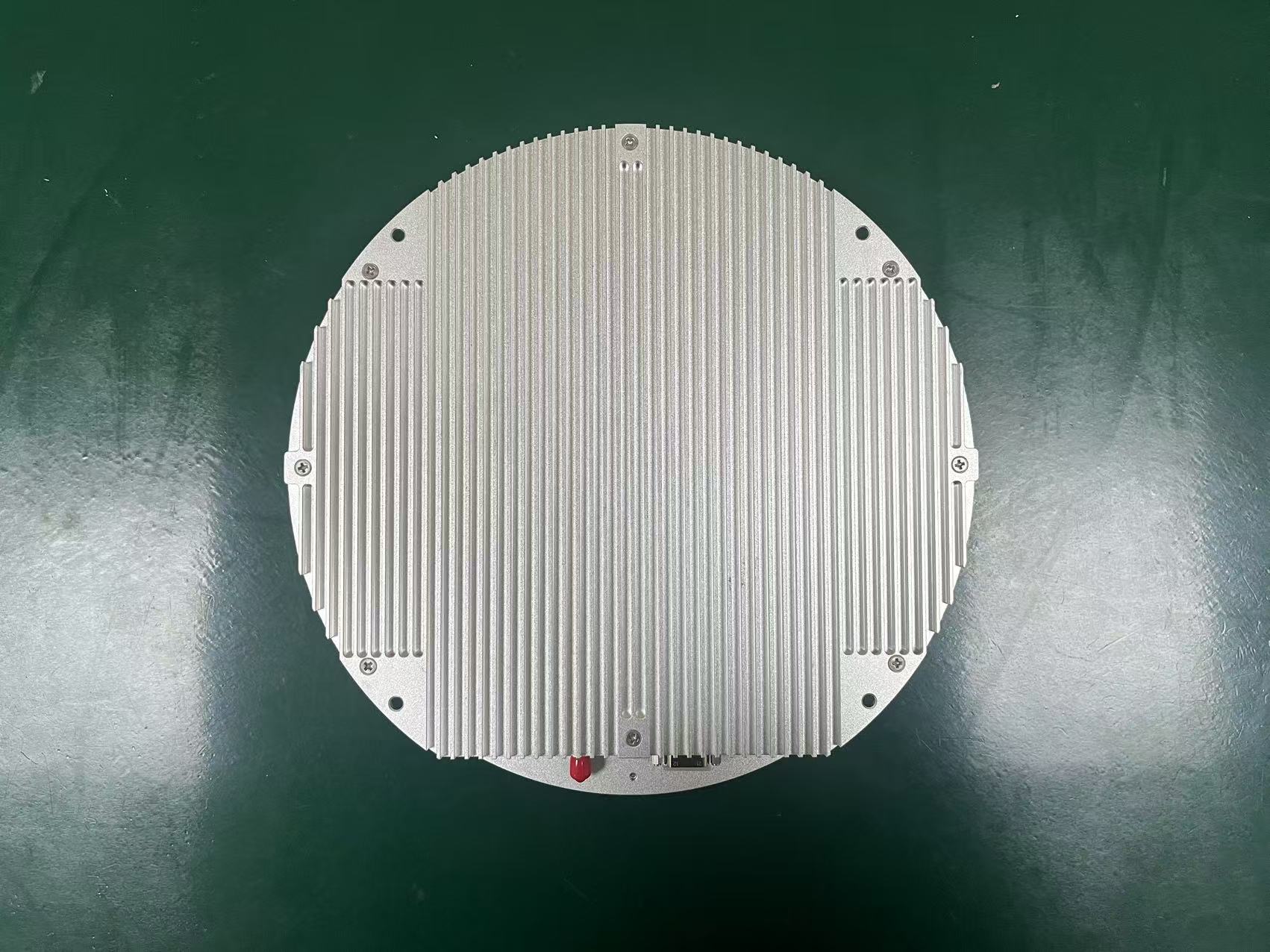

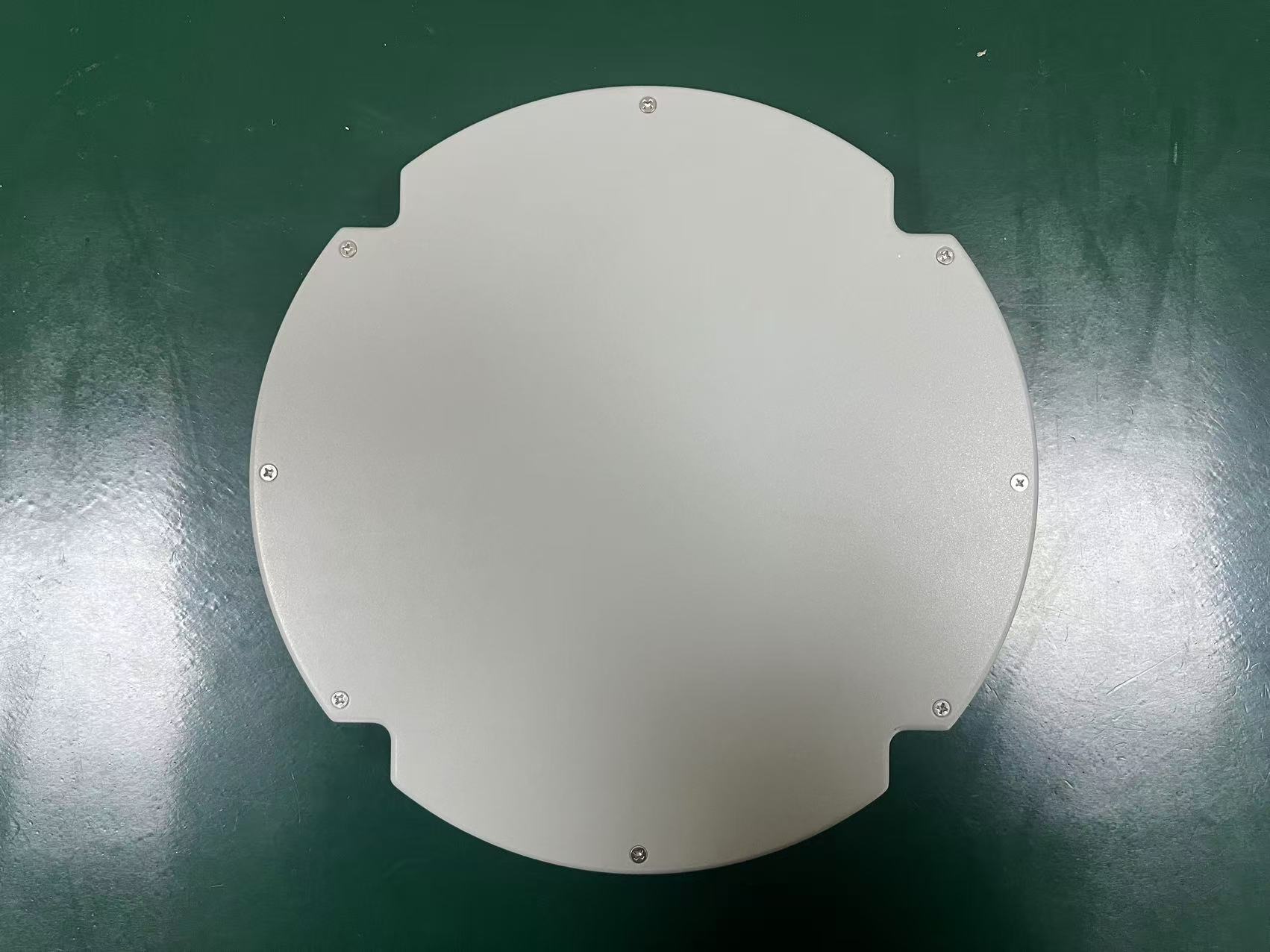

Shape and structure

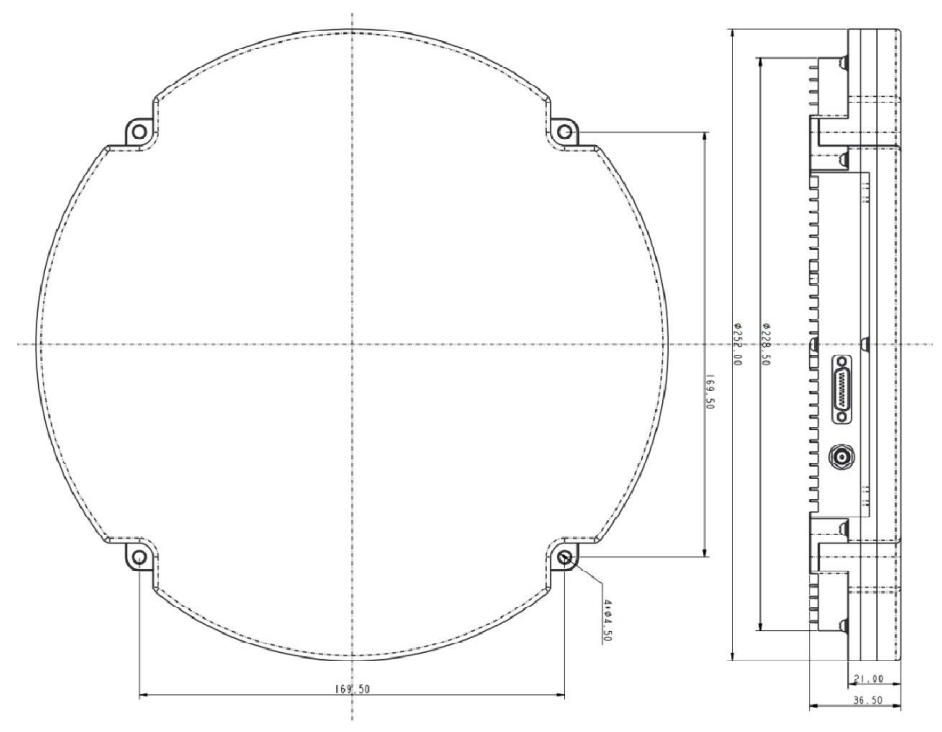

1. External dimensions Φ252×36.5mm
Weight (g) < 1100 Power
Consumption (w) < 25 W
Antenna Array 11
Simultaneous Independent Nulling 9
Operating Voltage 12 V DC
Operating Temperature -40 °C to +70 °C
APPLICATION AREAS
• Fixed Winged Aircraft
• Rotary Wing Aircraft
• Unmanned Autonomous Systems
• Armored Vehicles
• Naval Platforms, Coast Guard Platforms
